Surface-mounted LED profile with pendant option, 44.8 mm x 42 mm
LED surface profile bar with hanging option, made of anodized aluminum measuring 44.8 mm x 42 mm, designed for installation on a surface or suspended, housing an LED strip inside.
- Supplied in 2-meter bars.
- Two end caps per bar.
- Opal diffuser of 2 meters.
-- Factory box information:
- Includes 20 bars (40 meters).
- Weight: 26.9 kg.
- Dimensions: 204 x 18 x 17 cm. (FS09)
Product datasheet:
Ref. 164542
Surface profile bar with hanging option for installing LED strips on a surface or suspended, measuring 44.8 mm x 42 mm. Made of aluminum with a silver anodized finish. Its design enhances spaces, creating a great sense of spaciousness.

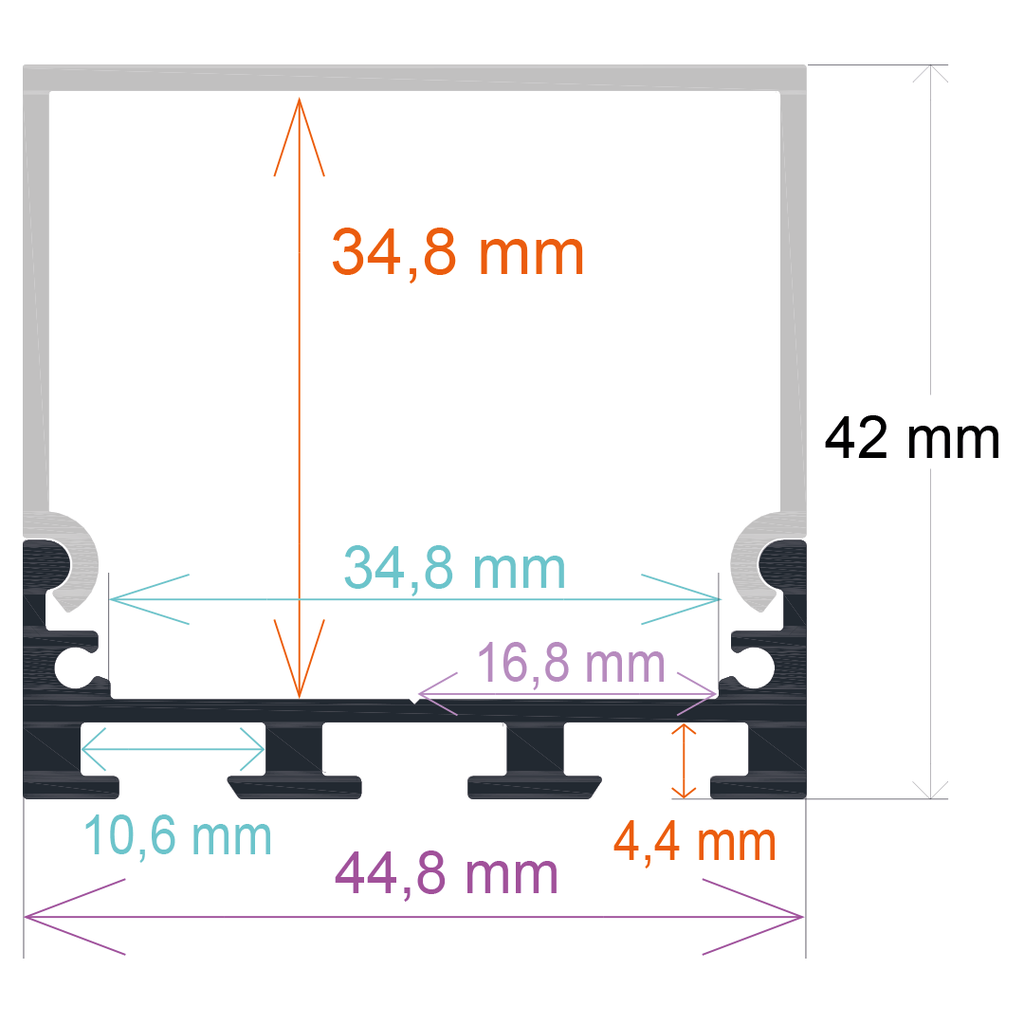

Dimensions:
- 44,8 mm. x 42 mm.
- Available in 2-meter bars
Accesories recommended not included:
- Suspension bracket for hanging the profile using a high-quality steel cable:
Cable lengths for suspension: 1 m cable: Ref. 165001 2 m cable: Ref. 165000 3 m cable: Ref. 165013
- Clamp for securing the profile to the ceiling with a free space at the back: Ref. 165002, Ref. 165003
- Connector to join two profile ends in a straight line: Thicker: Ref.- 165005. Thinner: Ref.- 165007
- Connector to join two profile ends at a corner: Flat 90º corner: Ref. 165008 Vertical 90º corner: Ref. 165009
