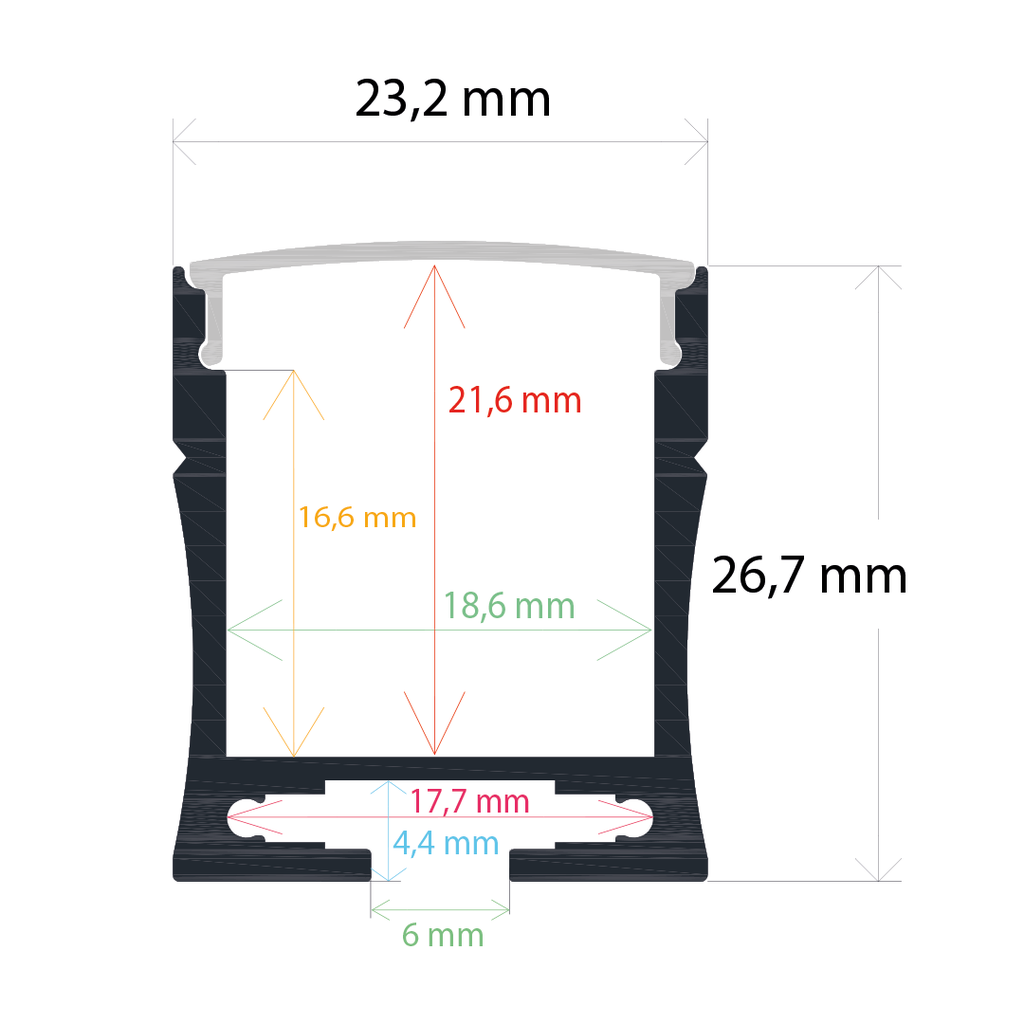

Surface-mount LED profile with hangin option, 23.2 mm x 26.7 mm
Surface-mounted LED profile bar with suspended option, made of anodized aluminum measuring 23.2 mm × 26.7 mm, designed for installation on a surface or suspended, with an LED strip inside.
Supplied in 2-meter bars.
Two end caps per bar.
Opal diffuser, 2 meters long.
-- Factory box information:
Includes 30 bars (60 meters total).
Weight: 25.5 kg.
Dimensions: 204 x 18 x 15 cm. (FS09)
Product datasheet:
Ref. 162327
Profile bar for installing LED strips on a surface or suspended, measuring 23.2 mm × 26.7 mm. Made of aluminum with a silver anodized finish. Its design gives it a stylish look, making it an excellent solution to enhance spaces and create a strong sense of spaciousness.
Dimensions:
- 23,2 mm. x 26,7 mm.
- Available in 2-meter bars
Accesories recommended not included
- Suspension bracket for hanging the profile using a high-quality steel cable:
1 m cable. Ref. 165001. 2 m cable. Ref. 165000. 3 m cable. Ref. 165013.
- Special clip for ceiling mounting with free space behind: Ref. 165002
- Connector to join two profile ends in line: Thicker profile: Ref. 165005. Thinner profile: Ref. 165007.
- Connector to join two profile ends at a corner: 90º flat corner: Ref. 165008. 90º vertical corner: Ref. 165009.
- 30 m diffuser. Opal: Ref. 1601211. Transparent: Ref. 1601212.
