Surface-mounted LED profile with hanging option, 29.8 mm x 35.6 mm
LED profile bar for surface mounting or suspension, made of anodized aluminum measuring 29.8 mm x 35.6 mm, designed to house an LED strip inside.
- Supplied in 2-meter bars.
- Two end caps per bar.
- Opal diffuser, 2 meters long.
— Factory box information:
- Includes 25 bars (50 meters).
- Weight: 24.1 kg.
- Dimensions: 204 x 18 x 15 cm. (FS09)
Product datasheet:
Ref. 163036
Surface profile bar with hanging option for installing LED strips on a surface or suspended, measuring 29.8 mm x 35.6 mm. Made of aluminum with a silver anodized finish. Its design enhances spaces, creating a great sense of spaciousness.
Dimensions:

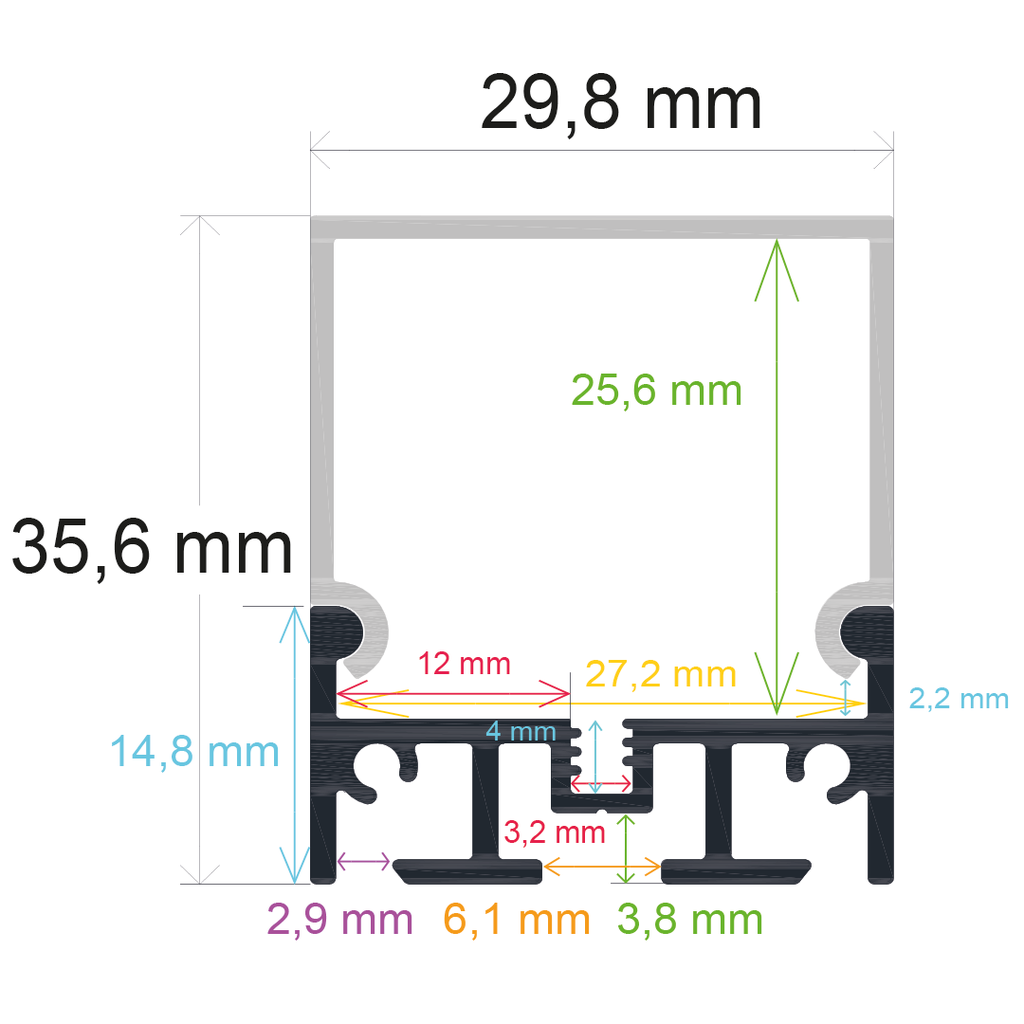

- 29,8 mm. x 35,6 mm.
- Available in 2-meter bars
Accesories recommended not included:
- Suspension bracket for hanging the profile using a high-quality steel cable:
Steel cable for suspension: 1 m cable: Ref. 165001 2 m cable: Ref. 165000 3 m cable: Ref. 165013
- Clamp for securing the profile to the ceiling with free space at the back: Ref. 165002
- Connector for joining two profile ends in line: Thicker: Ref. 165005. Thinner: Ref. 165007.
- Connector to join two profile ends at a corner: 90º flat corner: Ref. 165008 90º vertical corner: Ref. 165009
