Surface-mounted LED profile with hanging option, 35 mm x 35 mm
LED surface profile bar with hanging option, made of anodized aluminum measuring 35 mm x 35 mm, designed for surface mounting or suspended installation with an LED strip inside.
Supplied in 2-meter bars.
Two end caps per bar.
Opal diffuser of 2 meters.
--Factory box information:
- Includes 25 bars (50 meters).
- Weight: 29.1 kg.
- Dimensions: 204 x 18 x 15 cm. (FS09)
Product datasheet:
Ref. 163535
Profile bar for installing LED strips on a surface or suspended, measuring 35 mm x 35 mm. Made of aluminum with a silver anodized finish. Its finish provides a sleek design and makes it a great solution to enhance spaces, creating a spacious and open feeling.

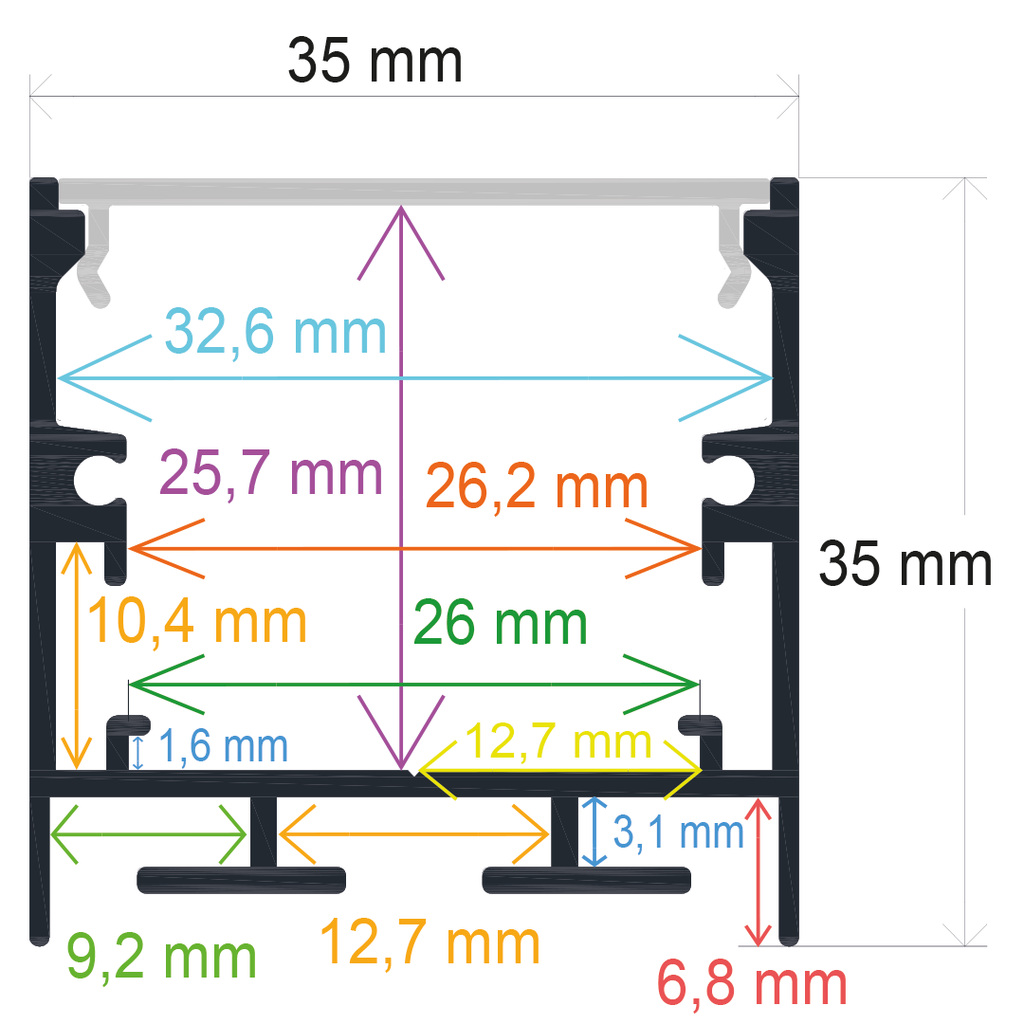

Dimensions:
- 35 mm. x 35 mm.
- Available in 2-meter bars
Accesories recommended not included:
- Suspension bracket for hanging the profile using a high-quality steel cable:
1 m cable. Ref.- 165001. 2 m cable. Ref.- 165000. 3 m cable. Ref.- 165013.
- Clamp for securing the profile to the ceiling with a free space at the back: Ref.- 165002
- Connector for joining two profile ends in line: Thicker: Ref.- 165005. Thinner: Ref.- 165007
- Connector for joining two profile ends at a corner: 90º flat corner: Ref. 165008. 90º vertical corner: Ref. 165009.
- Diffuser, 30 m. Opal: Ref. 1601321. Transparent: Ref. 1601322.
