Surface-mounted LED profile with pendant option, 50 mm x 75 mm
Surface-mounted LED profile bar with hanging option, made of anodized aluminum measuring 55 mm x 32 mm, designed for installation on a surface or suspended, housing an LED strip inside.
- Supplied in 2-meter bars.
- Two end caps per bar. 2-meter opal diffuser.
-- Factory box information:
- Includes 15 bars (30 m).
- Weight: 27.8 kg.
- Dimensions: 204 x 18 x 13 cm. (FS09)
Product datasheet:
Ref. 165075
Perfil LED de superficie con opción colgante para la instalación de tiras LED en una superficie o de forma suspendida de 50 mm. x 75 mm. Fabricada en aluminio con acabado anodizado en plata. Su acabado le otorga diseño y le convierte en una gran solución para realzar espacios, creando así una gran sensación de amplitud.
This LED profile bar includes a removable anodized aluminum piece where the LED strip will be placed. It attaches to the outer piece using the included clips and screws.

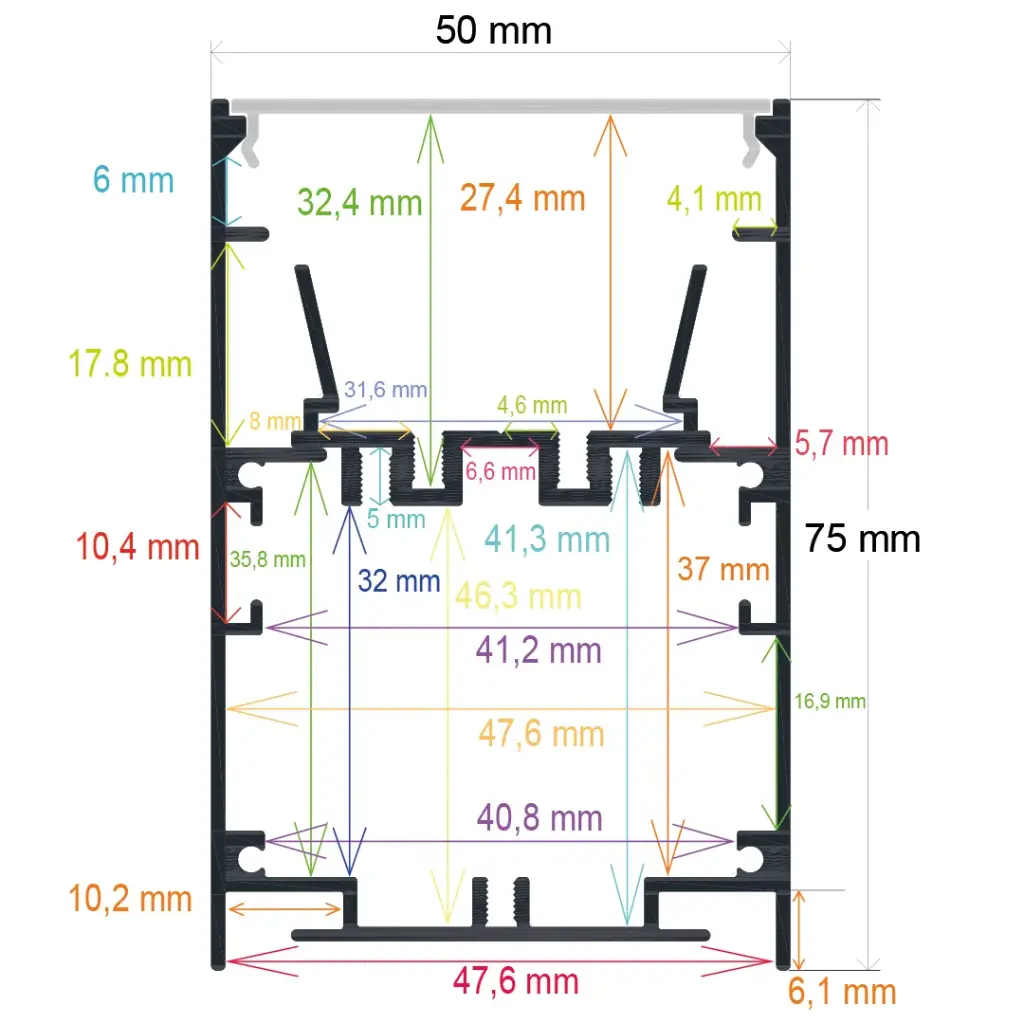

Dimensions:
- 50 mm. x 75 mm.
- Available in 2-meter bars
Accesories recommended
- 30 m diffuser. Opal: Ref. 1601421 Transparent: Ref. 1601422
- Suspension bracket for hanging the profile using a high-quality steel cable:
1 m cable — Ref. 165001 2 m cable — Ref. 165000 3 m cable — Ref. 165013
- Clip for securing the profile to a surface: Ref. 165018
- Connector to join two profile ends in a straight line: Thicker: Ref. 165005 Thinner: Ref. 165007
- Connector to join two profile ends at a corner: 90º flat corner: Ref. 165008 90º vertical corner: Ref. 165009
