Hanging LED profile, 35.22 mm x 66 mm
LED profile bar for suspension, made of anodized aluminum, measuring 35.22 mm x 66 mm, designed for suspended installation with an LED strip inside.
Supplied in 2 m bars.
Two end caps per bar.
Opal diffuser, 2 m length.
--Factory box information:
- Includes 10 bars (20 m).
- Weight: 19.7 kg.
- Dimensions: 204 x 18 x 15 cm. (FS09)
Product datasheet:
Ref.- 163566
Suspension profile bar for LED strip installation, measuring 35.22 mm x 66 mm. Made of aluminum with a silver anodized finish. Its design provides an elegant look and makes it an excellent solution to enhance spaces, creating a great sense of spaciousness.

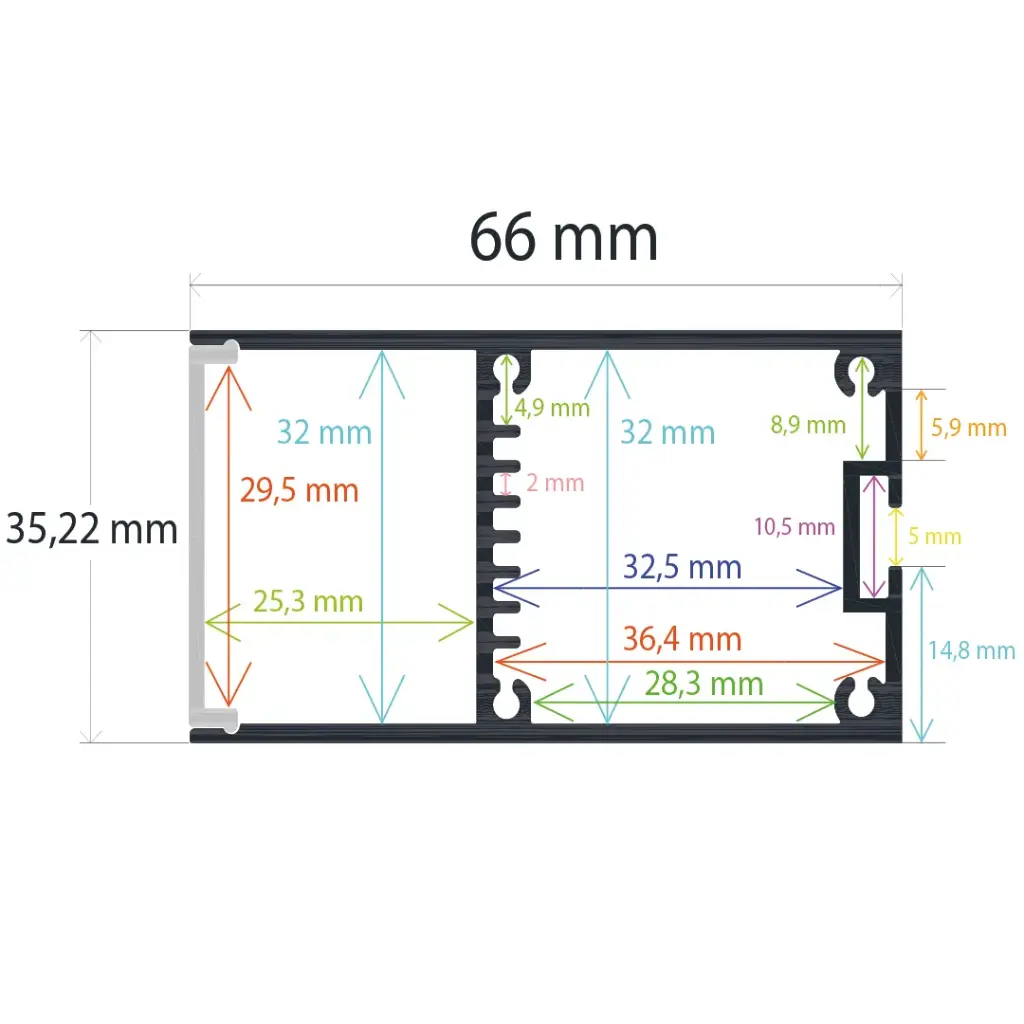

Dimensions:
- 35,22 mm. x 66 mm.
- Available in 2-meter bars
Accesories recommended not included:
- Suspension bracket for hanging the profile using a high-quality steel cable:
1 m cable. Ref.- 165001. 2 m cable. Ref.- 165000. 3 m cable. Ref.- 165013.
- Clamp for securing the profile to the ceiling with free space behind: Ref.- 165002, Ref.- 165011
- Connector to join two profile ends in line: Thicker: Ref.- 165005. Thinner: Ref.- 165007
- Connector to join two profile ends at a corner: 90º Flat corner: Ref. 165008 90º Vertical corner: Ref. 165009
